DIELINES
eCommerce Packaging
Corrugated Dieline: B-Flute
Elmhurst wanted an unboxing experience that elevated it’s brand.
- RETT (Roll End Tuck Top) with Dust Flaps
- Flexo Graphics, 2-Sides
Skillsets
- Structural Design
- Creative & Design Direction
- Branding & Identity
- Packaging Design
- Graphic Design
- 3D Modeling & Rendering
Dieline - Corrugated, Produce Masterpack
Rendering
Corrugated, E-Commerce Packaging
Club Store Packaging
Corrugated Dieline with Graphics: B-Flute
- Multipack with Locking Tab & Auto-Bottom
- Litho-Lam Graphics
Rough Sketches
Corrugated, E-Commerce Packaging
Rendering
Club Store, On-Shelf Packaging
Produce Box
Corrugated Dieline: C Flute
- Corrugated Produce Box with Locking System
- Kraft, Single-Color, Info-Only, Flexo Graphics
Club Store Packaging
SBS Dieline with Graphics: SBS
- Multipack with Window & Graphic Divider
- Litho-Lam Graphics
- Vacuum-Formed PET-R, Security Tray Insert
Club Store Full Pallet
Dieline with Graphics: B-Flute
- Multipack Packaging with Window
- Multipack Tray
- Litho-Lam Graphics
Instruction Sheet
Club Store, Multipack Packaging
Page 1 of 3
Software
- ArtiosCAD
- TOPs
- SolidWorks
- FormZ
- KeyShot
- Adobe Creative Suite

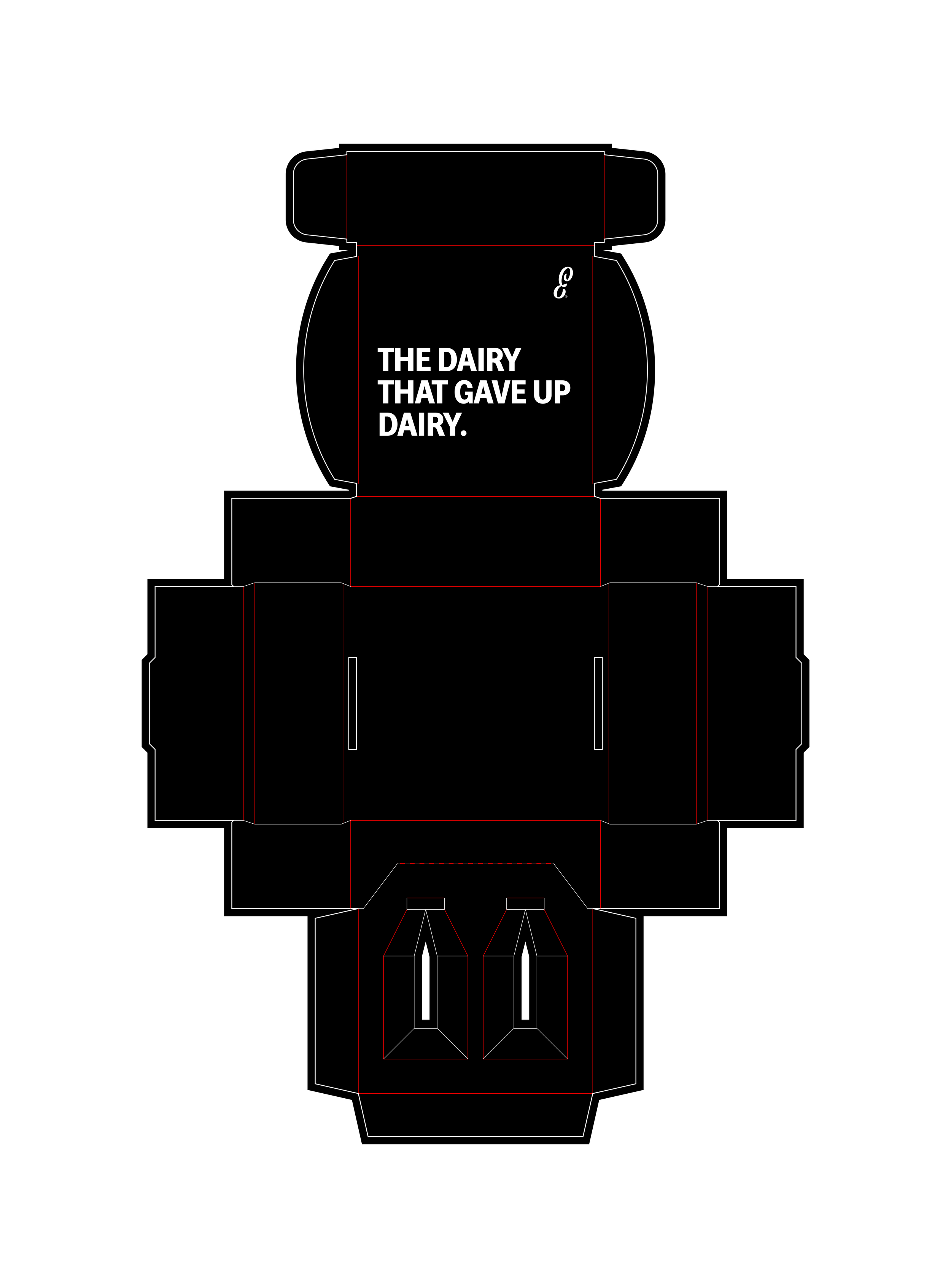

Dieline with Placed Artwork - Inside

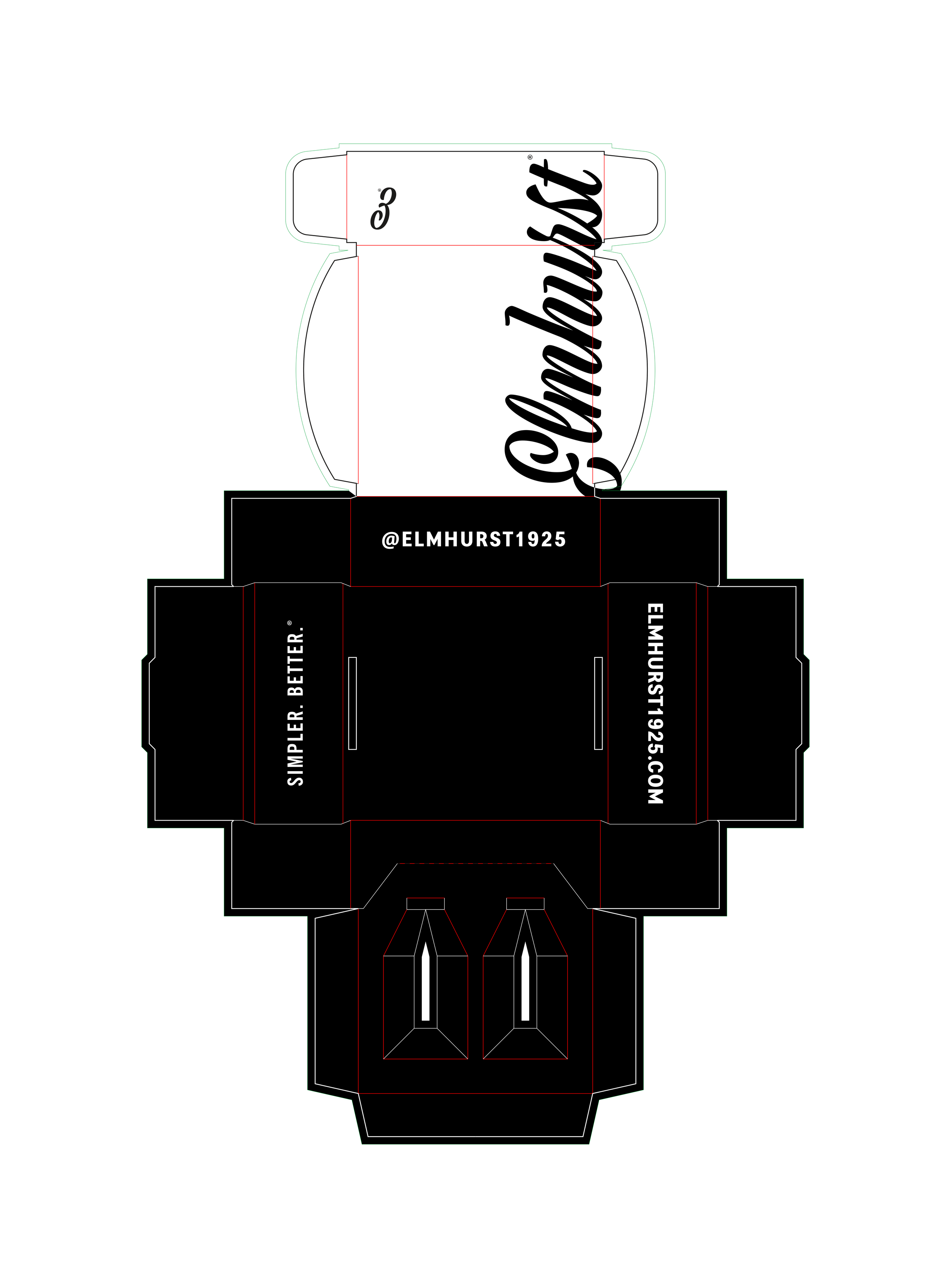

Dieline with Placed Artwork - Outside
Instruction Sheet
Club Store, Multipack Tray
Page 2 of 3

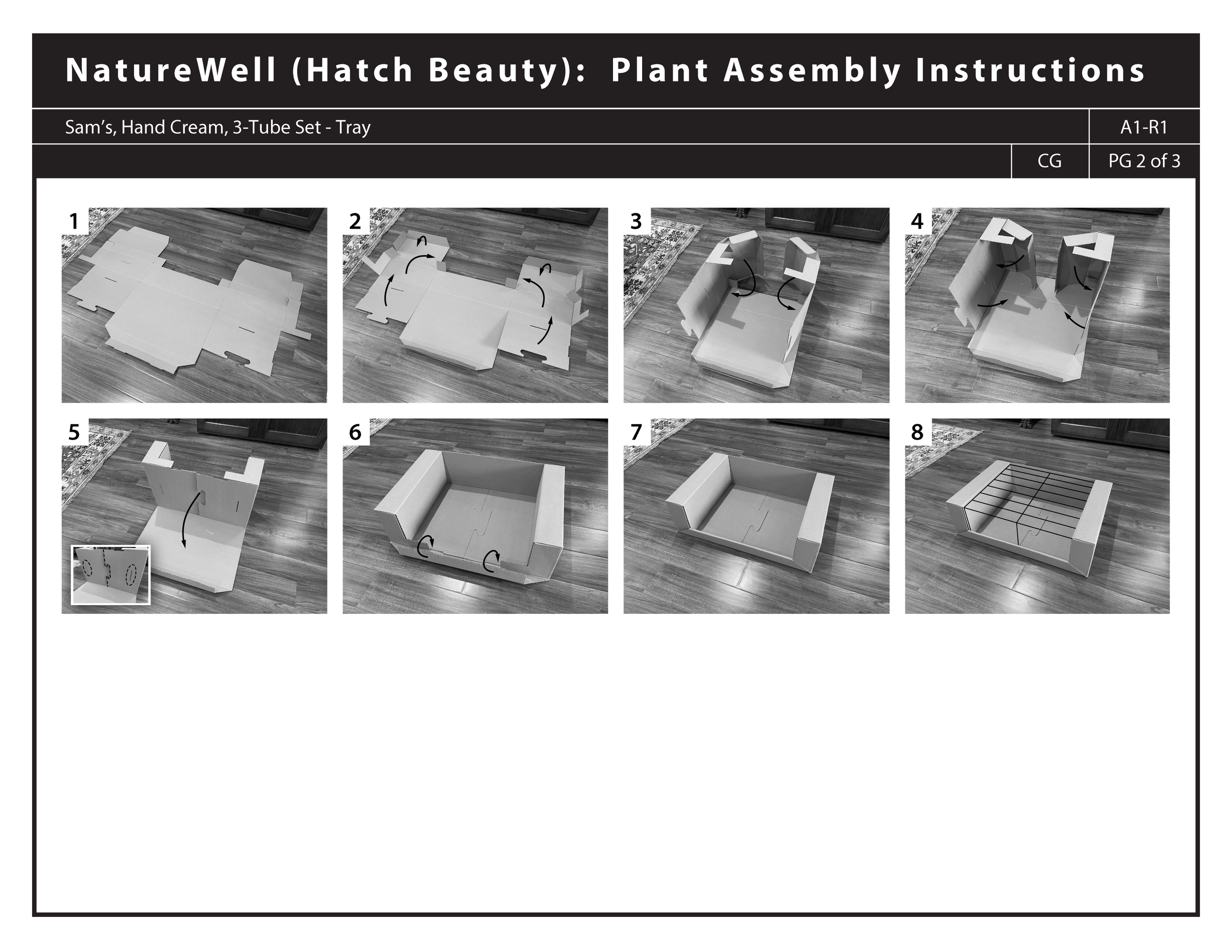

Instruction Sheet
Club Store, Multipack Tray
Page 3 of 3
Dieline - Club Store, Multipack Package

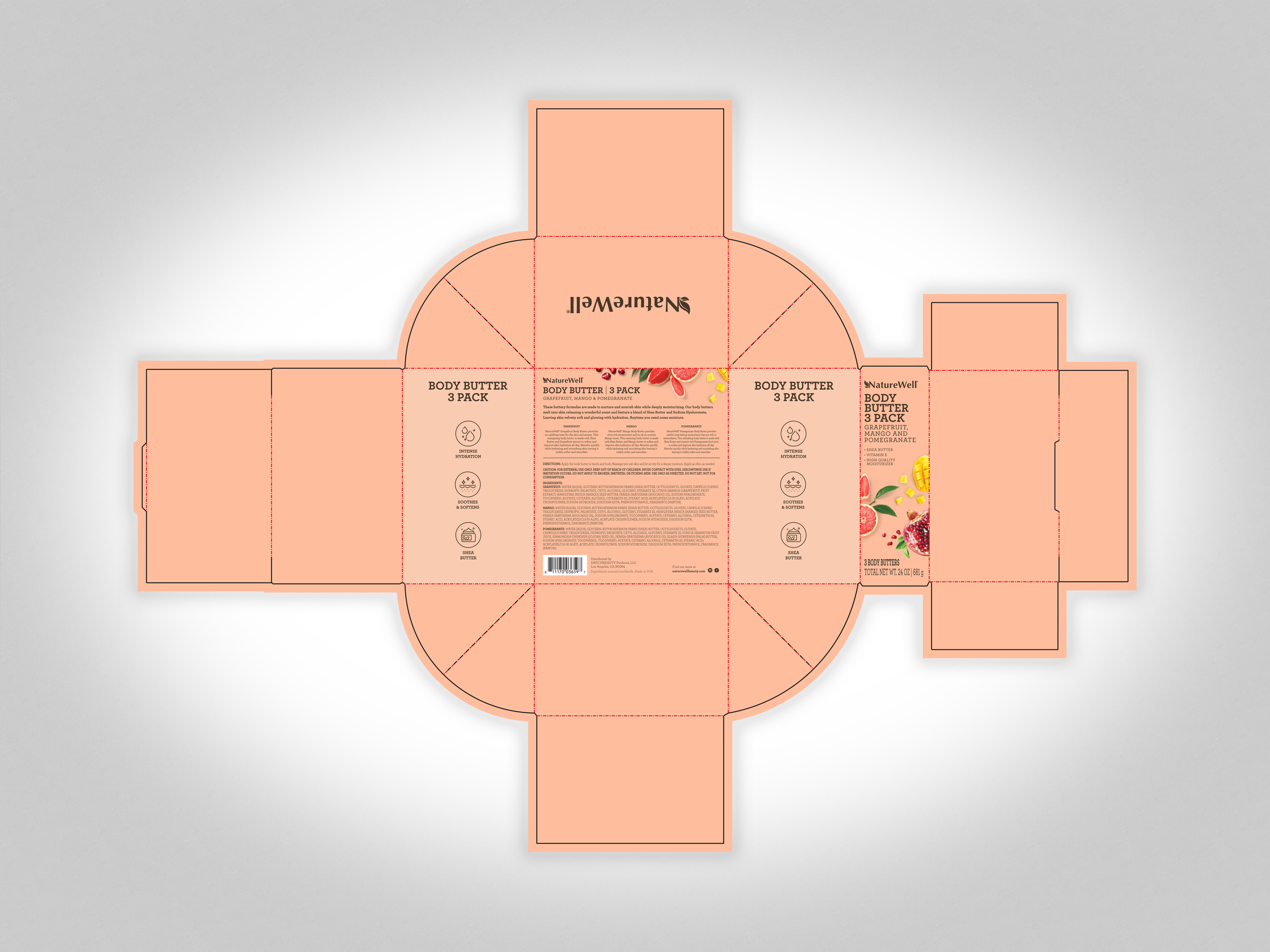

Dieline with Litho-Lam Graphics - Club Store, Multipack Packaging
Dieline - Club Store, Tray
Layout - Club Store, Packaging, Tray & Full Pallet

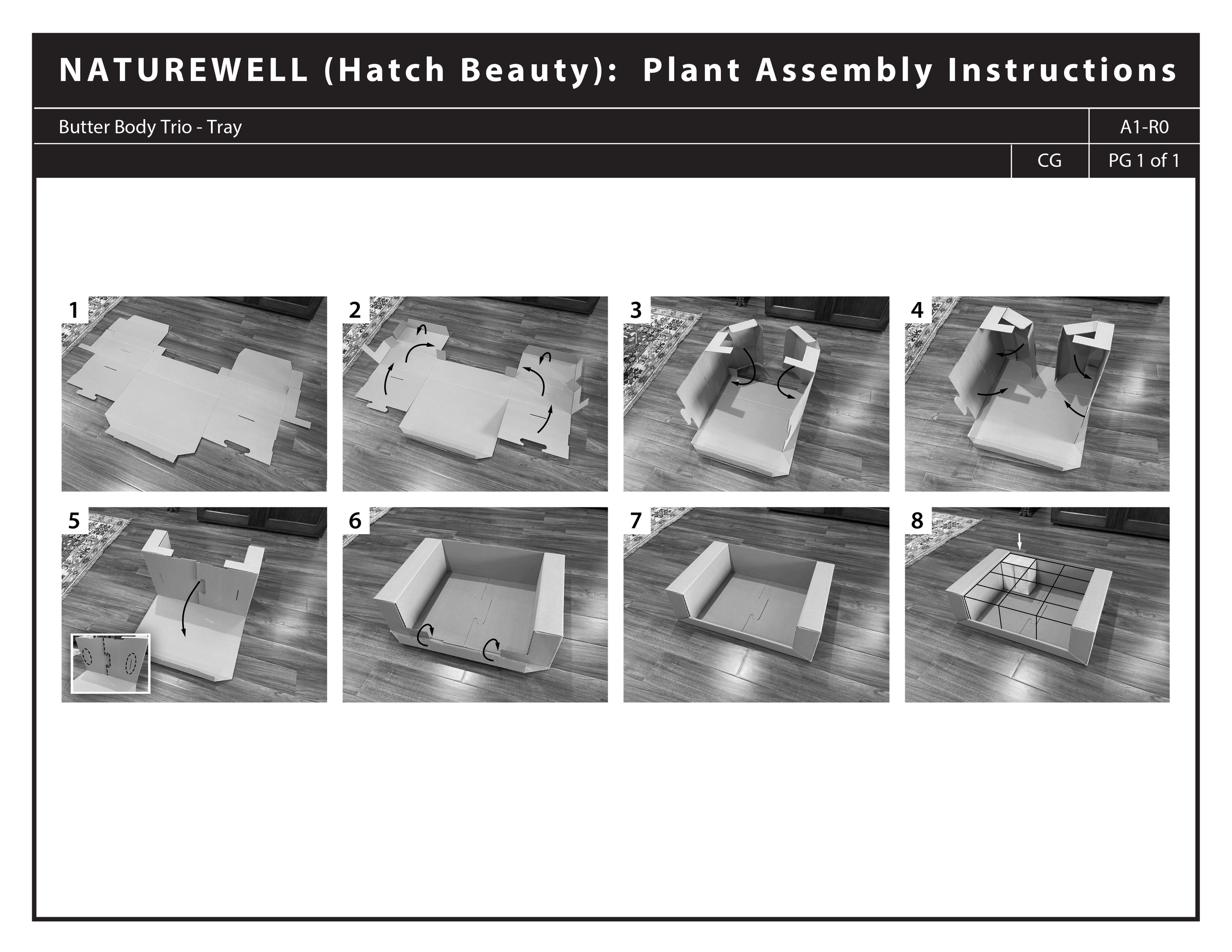

Instruction Sheet
Club Store, Multipack Tray
Page 1 of 1

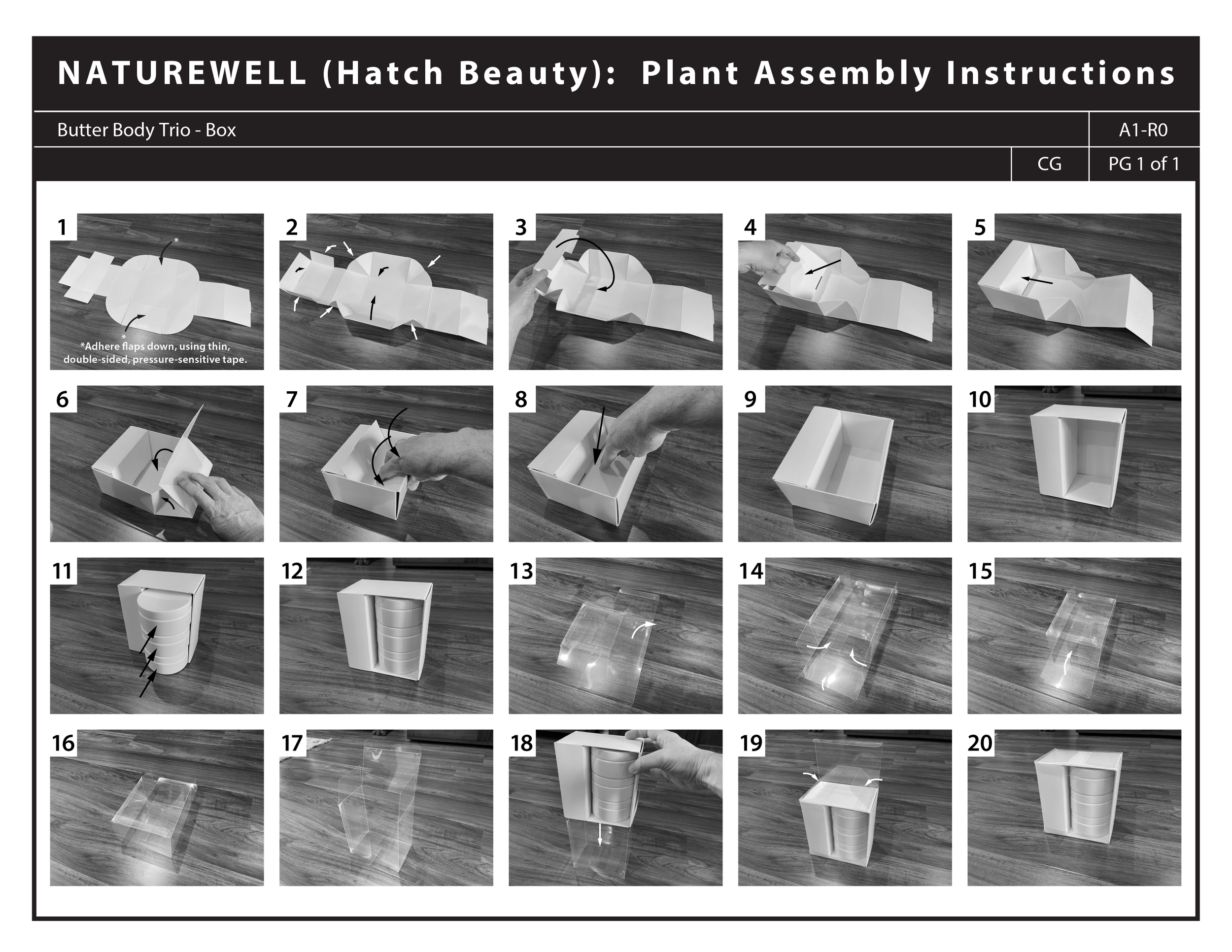

Instruction Sheet
Club Store, Multipack Packaging
Page 1 of 1
Rendering
Corrugated, E-Commerce Packaging
Dieline - Corrugated, E-commerce Packaging
Dieline with Litho-Lam Graphics - Club Store, On-Shelf Packaging
Dieline - Club Store, Multipack packaging
